Revolving Crane Barge · Ref LMZ-1013

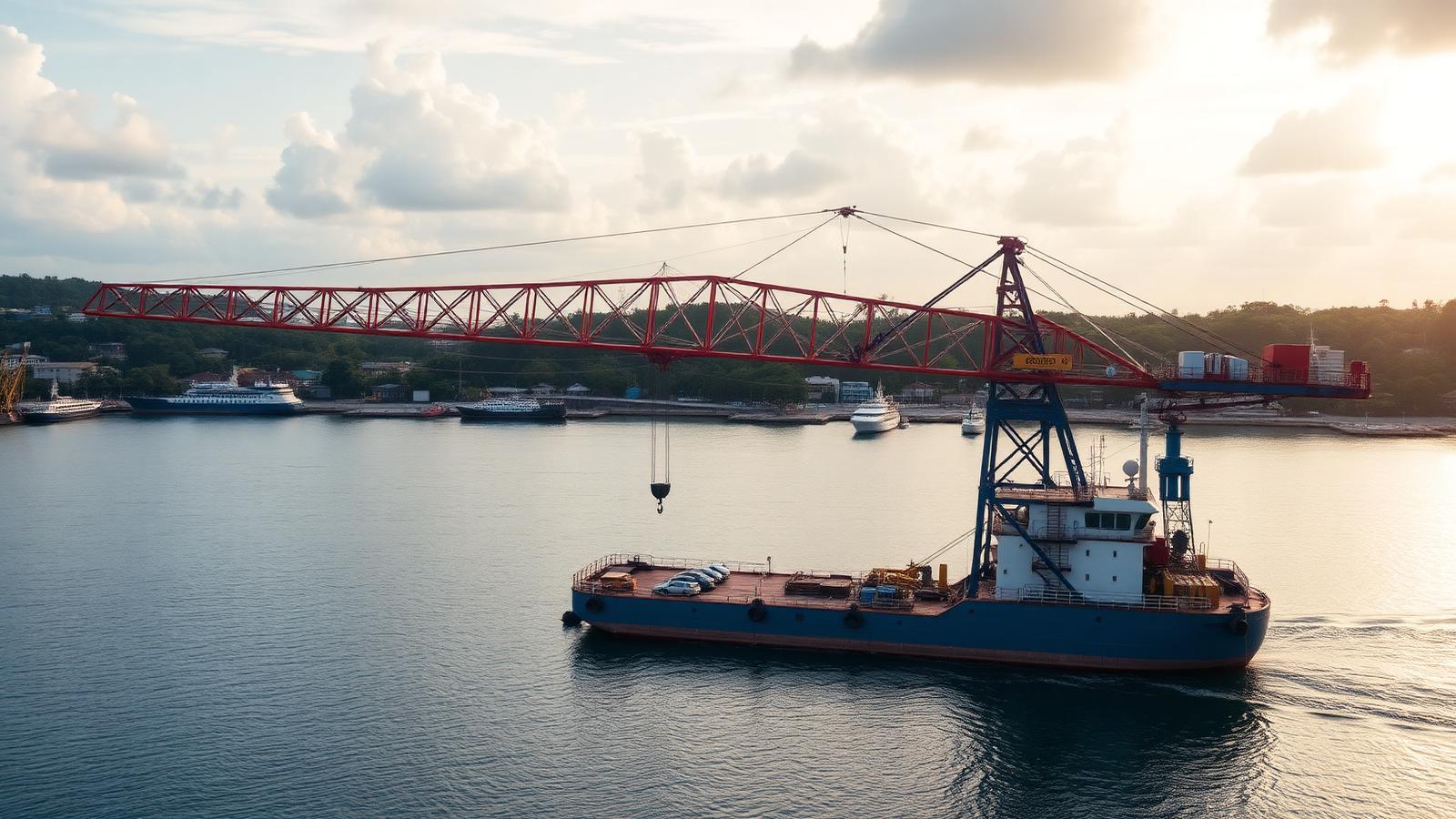

Titan — 600 MT Crane Barge
BatamBuilt 2014 · PT Bandar AbadiIndonesia flag · Bureau Veritas
$8.60m
Available · Negotiable
Vessel overview
Heavy lift crane barge with recent load test certification, ready for regional marine construction projects.
Deadweight
4,200 MT
Gross tonnage
3,900
Length overall
91.4 m
Beam
27.4 m
Draft
3.9 m
Speed
—
Power
0 BHP
Accommodation
40 berths
Full specification
Over 150 verified data points across nine technical sections.
- Cranes
- 1 x 600 MT revolving crane
- Capstans
- 2 x 5 MT
- Windlass
- 2 x hydraulic combined windlass / mooring winch
- Pilot Ladder
- 2 x SOLAS approved
- Towing Winch
- Not fitted
- Mooring Ropes
- 8 x 220 m polyester, certified
- Mooring Winches
- 4 x 15 MT hydraulic
- Provision Crane
- 1 x 2 MT electro hydraulic
- Deck Cargo Rating
- 5 t/m2
- Accommodation Ladder
- 2 x aluminium with davit
- Hydraulic Power Pack
- 2 x 90 kW
Request an inspection
We arrange access, surveyors and superintendents anywhere in the world.
